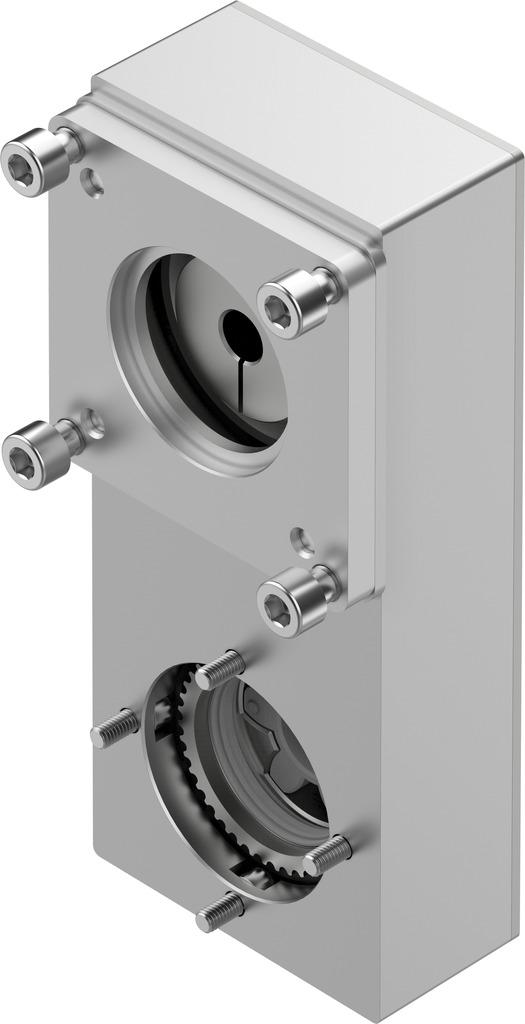

Reference imageConfirm configuration by manufacturer part number.
Festo
8084498
Parallel kit EAMM-U-65-T42-67A-87
The Festo size 65 industrial component, part number 8084498, features a 1:1 gear ratio with an 87 mm center-to-center distance and supports any mounting position. This unit handles a maximum rotational speed of 3000 1/min, a transferable torque of 3 Nm, and a no-load driving torque of 0.22 Nm, with a total product weight of 663 g and an IP40 degree of protection. Built with actuator interface code T42 and motor input interface code 67A, the assembly maintains VDMA24364 zone III LABS conformity alongside RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8084498
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8084498.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 65
- Center-to-center distance
- 87 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 3000 1/min
- LABS (PWIS) conformity
- VDMA24364 zone III
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Mass moment of inertia
- 41.2 kgmm²
- No-load driving torque
- 0.22 Nm
- Transferable torque
- 3 Nm
- Product weight
- 663 g
- Interface code, actuator
- T42
- Interface code, motor in
- 67A
- Note on materials
- RoHS-compliant
