Festo
8085018

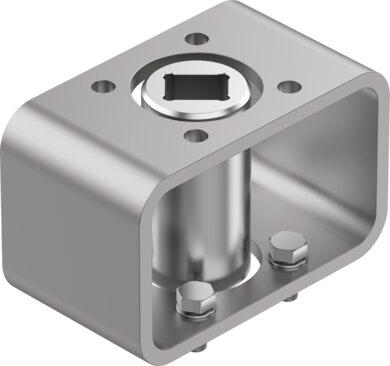

Mounting kit DARQ-K-Z-F04S11-F04S11-R13
The Festo part number 8085018 is an industrial component featuring a two-flats and external square mounting kit design based on EN 15081 and ISO 5211 norms. Weighing 465 g with a pack size of 1, it includes a high-alloy stainless steel quick-coupling, disc, and screws, alongside a steel mounting adapter featuring CRC 2 moderate corrosion stress resistance and VDMA24364 Zone III LABS conformity. Connection 1 and Connection 2 both function as actuator and reducing outlets respectively, utilizing SW11 design with hole pattern 04 and RoHS compliant materials. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085018
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085018.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 15081 | ISO 5211
- Pack size
- 1
- Structural design
- Two-ats and external square | Mounting kit
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 465 g
- Connection 1, function
- Actuator outlet
- Connection 1, design
- SW11 | Hole pattern 04
- Connection 2, function
- Reducing outlet
- Connection 2, design
- SW11 | Hole pattern 04
- Note on materials
- RoHS compliant
- Quick-coupling material
- high-alloy stainless steel
- Mounting adapter material
- Steel
- Disc material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
