Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

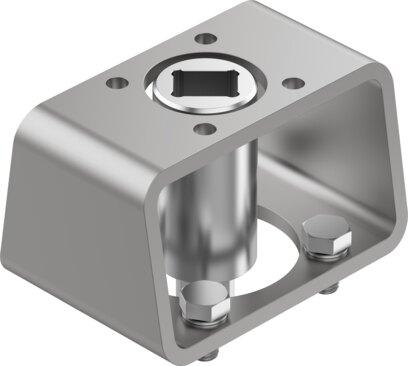

Reference imageConfirm configuration by manufacturer part number.
Festo
8085023
Mounting kit DARQ-K-Z-F07S17-F05S14-R13
The Festo part number 8085023 is an industrial component featuring a mounting kit structural design with two-flats and an external square, built to EN 15081 and ISO 5211 norms. This pack size of 1 weighs 890 g and includes an actuator outlet connection with SW17 and hole pattern 07 alongside a reducing outlet with SW14 and hole pattern 05. Constructed with a steel mounting adapter, high-alloy stainless steel quick-coupling, disc, and screws, the unit achieves a corrosion resistance class of 2 for moderate corrosion stress and VDMA24364 Zone III LABS conformity with RoHS compliant materials. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085023
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085023.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 15081 | ISO 5211
- Pack size
- 1
- Structural design
- Two-ats and external square | Mounting kit
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 890 g
- Connection 1, function
- Actuator outlet
- Connection 1, design
- SW17 | Hole pattern 07
- Connection 2, function
- Reducing outlet
- Connection 2, design
- SW14 | Hole pattern 05
- Note on materials
- RoHS compliant
- Quick-coupling material
- high-alloy stainless steel
- Mounting adapter material
- Steel
- Disc material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8085023. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
