Festo
8085024

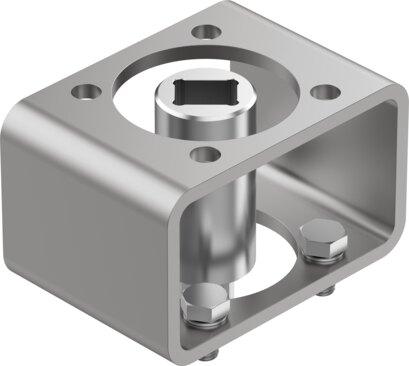

Mounting kit DARQ-K-Z-F07S17-F07S14-R13
The Festo part number 8085024 is an industrial component comprising a mounting kit with a two-flats and external square structural design, featuring a product weight of 945 g and a pack size of 1. Built in accordance with EN 15081 and ISO 5211 norms, this assembly incorporates a high-alloy stainless steel quick-coupling, disc, and screws, alongside a steel mounting adapter and RoHS-compliant materials. It provides a corrosion resistance class of CRC 2 for moderate corrosion stress and VDMA24364 Zone III LABS conformity, featuring an actuator outlet with SW17 design and hole pattern 07 as connection 1, and a reducing outlet with SW14 design and hole pattern 07 as connection 2. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085024
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085024.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 15081 | ISO 5211
- Pack size
- 1
- Structural design
- Two-ats and external square | Mounting kit
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 945 g
- Connection 1, function
- Actuator outlet
- Connection 1, design
- SW17 | Hole pattern 07
- Connection 2, function
- Reducing outlet
- Connection 2, design
- SW14 | Hole pattern 07
- Note on materials
- RoHS compliant
- Quick-coupling material
- high-alloy stainless steel
- Mounting adapter material
- Steel
- Disc material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8085024. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
