Festo
8085026

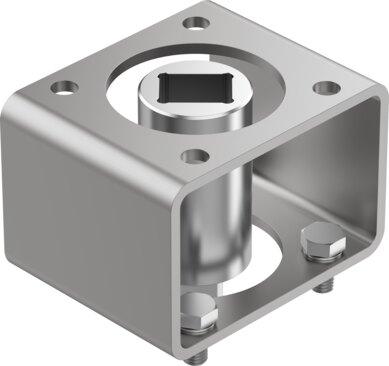

Mounting kit DARQ-K-Z-F10S22-F05S14-R13
The Festo part number 8085026 is an industrial component featuring a two-flats and external square structural design mounting kit built to EN 15081 and ISO 5211 norms with a product weight of 1396 g and a corrosion resistance class of CRC 2 for moderate corrosion stress. Constructed with a steel mounting adapter, RoHS-compliant high-alloy stainless steel quick-coupling, disc, and screws, this unit includes an actuator outlet connection with SW22 and drilling pattern 10 alongside a reducing outlet connection with SW14 and hole pattern 05, while conforming to VDMA24364 Zone III LABS PWIS standards in a pack size of 1. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085026
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085026.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 15081 | ISO 5211
- Pack size
- 1
- Structural design
- Two-ats and external square | Mounting kit
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 1396 g
- Connection 1, function
- Actuator outlet
- Connection 1, design
- SW22 | Drilling pattern 10
- Connection 2, function
- Reducing outlet
- Connection 2, design
- SW14 | Hole pattern 05
- Note on materials
- RoHS compliant
- Quick-coupling material
- high-alloy stainless steel
- Mounting adapter material
- Steel
- Disc material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8085026. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
