Festo
8085027

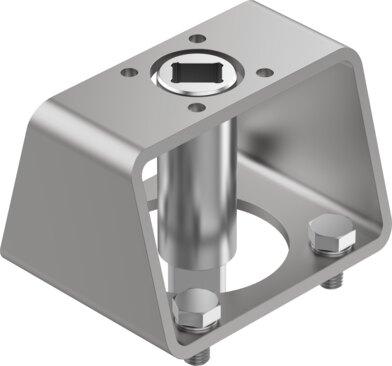

Mounting kit DARQ-K-Z-F10S22-F07S17-R13
The Festo part number 8085027 is a 1970 g industrial component featuring a mounting kit structural design with two-flats and an external square, built in accordance with EN 15081 and ISO 5211 norms. This assembly includes a high-alloy stainless steel quick-coupling, disc, and screws, alongside a steel mounting adapter with RoHS-compliant materials and a CRC 2 moderate corrosion stress rating alongside VDMA24364 Zone III LABS conformity. Connection 1 functions as an actuator outlet with an SW22 design and drilling pattern 10, while Connection 2 operates as a reducing outlet utilizing an SW17 design and hole pattern 07. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085027
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085027.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 15081 | ISO 5211
- Pack size
- 1
- Structural design
- Two-ats and external square | Mounting kit
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 1970 g
- Connection 1, function
- Actuator outlet
- Connection 1, design
- SW22 | Drilling pattern 10
- Connection 2, function
- Reducing outlet
- Connection 2, design
- SW17 | Hole pattern 07
- Note on materials
- RoHS compliant
- Quick-coupling material
- high-alloy stainless steel
- Mounting adapter material
- Steel
- Disc material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8085027. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
