Festo
8085113

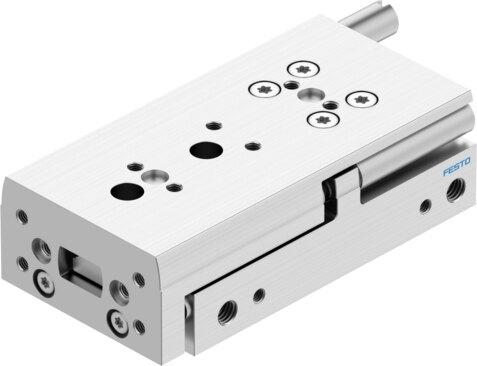

Mini slide DGST-8-40-PA
Engineered with a double piston yoke and recirculating ball bearing guide, this Festo industrial component features an 8 mm piston diameter and a 40 mm stroke operating at a pressure range of 0.15 MPa to 0.8 MPa. The double-acting drive unit includes elastic cushioning rings at both ends, position sensing via proximity switch, and achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm or less. Operating via compressed air compliant with ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -10 °C to 60 °C, the unit offers ISO Class 6 cleanroom suitability and a corrosion resistance class of 1. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085113
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085113.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 40 mm
- Adjustable end-position range/front length
- 16.3 mm
- Adjustable end-position range/rear length
- 14.4 mm
- Piston diameter
- 8 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Double piston | Yoke | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Max. speed
- 0.8 m/s
- Repetition accuracy
- <= 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.05 J
- Cushioning length
- 1.5 mm
- Max. force Fy
- 325 N
- Max. force Fz
- 325 N
- Max. torque Mx
- 3 Nm
- Max. torque My
- 2.5 Nm
- Max. torque Mz
- 2.5 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8085113. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
