Festo
8085130

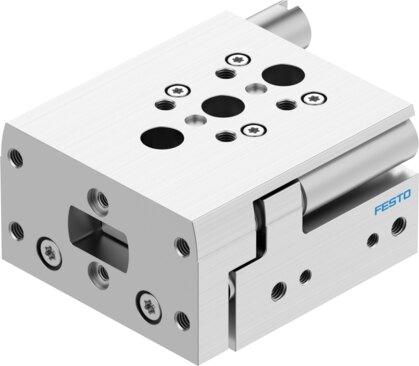

Mini slide DGST-16-10-PA
The Festo part number 8085130 is a double-acting industrial component featuring a 16 mm piston diameter, a 10 mm stroke, and a yoke drive unit with a recirculating ball bearing guide. This double piston slide utilizes elastic cushioning rings at both ends, accommodates any mounting position, and operates on compressed air within a pressure range of 1 bar to 8 bar (14.5 psi to 116 psi). Position sensing is achieved via proximity switch, supporting a maximum speed of 0.8 m/s, a repetition accuracy of 0.3 mm or less, and an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085130
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085130.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Adjustable end-position range/front length
- 10.3 mm
- Adjustable end-position range/rear length
- 10.3 mm
- Piston diameter
- 16 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Double piston | Yoke | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar | 14.5 psi...116 psi
- Max. speed
- 0.8 m/s
- Repetition accuracy
- <= 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.25 J
- Cushioning length
- 1 mm
- Max. force Fy
- 820 N
- Max. force Fz
- 820 N
- Max. torque Mx
- 11.3 Nm
- Max. torque My
- 7 Nm
- Max. torque Mz
- 7 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8085130. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
