Festo
8085131

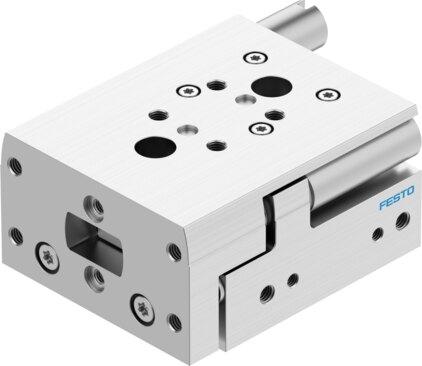

Mini slide DGST-16-20-PA
The Festo 8085131 is a double-acting industrial drive unit featuring a 16 mm piston diameter, a 20 mm stroke, and a yoke structural design incorporating a piston rod, slide, and recirculating ball bearing guide. Operating within a pressure range of 14.5 psi to 116 psi (1 bar to 8 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], this component achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm or less. Elastic cushioning rings at both ends complement the adjustable end-position ranges of 20.3 mm at the front and rear, while position sensing is handled via a proximity switch across an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085131
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085131.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 20 mm
- Adjustable end-position range/front length
- 20.3 mm
- Adjustable end-position range/rear length
- 20.3 mm
- Piston diameter
- 16 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Double piston | Yoke | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar | 14.5 psi...116 psi
- Max. speed
- 0.8 m/s
- Repetition accuracy
- <= 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.25 J
- Cushioning length
- 1 mm
- Max. force Fy
- 840 N
- Max. force Fz
- 840 N
- Max. torque Mx
- 11.3 Nm
- Max. torque My
- 7 Nm
- Max. torque Mz
- 7 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8085131. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
