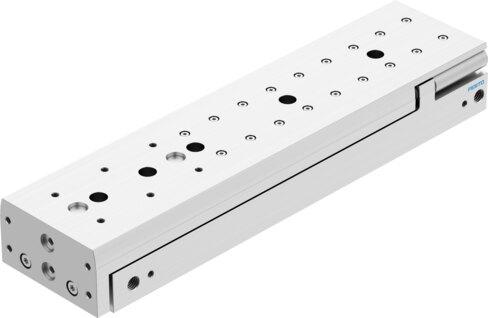

Name: Festo 8085148 Mini slide DGST-20-200-PA
Brand: Festo

Mini slide DGST-20-200-PA

The Festo part number 8085148 is a double-acting industrial component featuring a 20 mm piston diameter, a 200 mm stroke, and a yoke drive unit operating mode with a piston rod and slide structural design. Operating on compressed air within a pressure range of 14.5 psi to 116 psi (1 bar to 8 bar) and featuring elastic cushioning rings at both ends, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of 0.3 mm or less. It incorporates a ball bearing cage guide, allows for position sensing via proximity switch, and is suitable for installation in any mounting position within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8085148
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8085148.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 200 mm
Adjustable end-position range/front length: 32.9 mm
Adjustable end-position range/rear length: 31.1 mm
Piston diameter: 20 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Ball bearing cage guide
Structural design: Double piston | Yoke | Piston rod | Slide
Position sensing: Via proximity switch
Operating pressure: 0.1 MPa...0.8 MPa | 1 bar...8 bar | 14.5 psi...116 psi
Max. speed: 0.8 m/s
Repetition accuracy: <= 0.3 mm
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -10 °C...60 °C
Impact energy in the end positions: 0.35 J
Cushioning length: 1.2 mm
Max. force Fy: 1170 N
Max. force Fz: 1170 N
Max. torque Mx: 20 Nm
Max. torque My: 17 Nm
Max. torque Mz: 17 Nm
