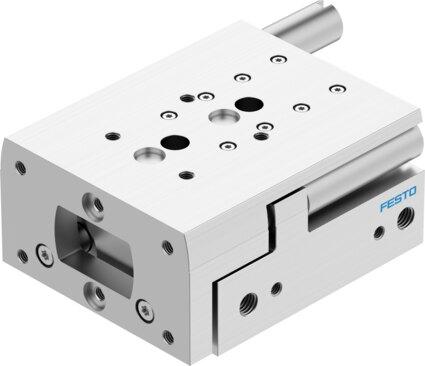

Reference imageConfirm configuration by manufacturer part number.
Festo
8085153
Mini slide DGST-25-50-PA
The Festo 8085153 is a double-acting industrial component featuring a 25 mm piston diameter, a 50 mm stroke, and a yoke drive unit operating mode with a ball bearing cage guide. Engineered with a double piston, piston rod, and slide structural design, this unit incorporates elastic cushioning rings at both ends and allows position sensing via a proximity switch. It operates on compressed air according to ISO 8573-1:2010 [7:4:4] within an operating pressure range of 14.5 psi to 116 psi (0.1 MPa to 0.8 MPa) and an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085153
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085153.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 50 mm
- Adjustable end-position range/front length
- 47 mm
- Adjustable end-position range/rear length
- 45.4 mm
- Piston diameter
- 25 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Double piston | Yoke | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar | 14.5 psi...116 psi
- Max. speed
- 0.8 m/s
- Repetition accuracy
- <= 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.45 J
- Cushioning length
- 1.2 mm
- Max. force Fy
- 1080 N
- Max. force Fz
- 1080 N
- Max. torque Mx
- 12 Nm
- Max. torque My
- 11 Nm
- Max. torque Mz
- 11 Nm
