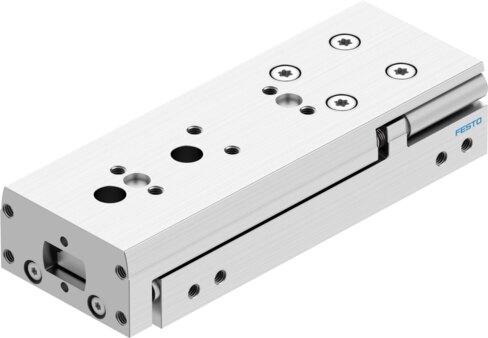

Name: Festo 8085161 Mini slide DGST-6-50-Y12A
Brand: Festo

Mini slide DGST-6-50-Y12A

The Festo 8085161 is a double-acting industrial component featuring a 6 mm piston diameter, a 50 mm stroke, and a yoke drive unit operating mode with a double piston, piston rod, and slide structural design. It incorporates a recirculating ball bearing guide, external hydraulic cushioning, and position sensing via proximity switch, operating within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar, 21.75 psi to 116 psi) at a maximum speed of 0.5 m/s and a repetition accuracy of <= 0.02 mm. Suitable for any mounting position, this unit operates on compressed air as per ISO 8573-1:2010 [7:4:4] within an ambient temperature range of -10 °C to 60 °C, meeting ISO 14644-1 Class 6 cleanroom suitability and featuring VDMA24364-B1/B2-L LABS conformity with a CRC rating of 1. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8085161
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8085161.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 50 mm
Adjustable end-position range/front length: 11.2 mm
Adjustable end-position range/rear length: 9.6 mm
Piston diameter: 6 mm
Drive unit operating mode: Yoke
Cushioning: External hydraulic cushioning
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Double piston | Yoke | Piston rod | Slide
Position sensing: Via proximity switch
Operating pressure: 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
Max. speed: 0.5 m/s
Repetition accuracy: <= 0.02 mm
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -10 °C...60 °C
Impact energy in the end positions: 0.1 J
Cushioning length: 4 mm
Max. force Fy: 280 N
Max. force Fz: 280 N
Max. torque Mx: 1.4 Nm
Max. torque My: 1.2 Nm
Max. torque Mz: 1.2 Nm
