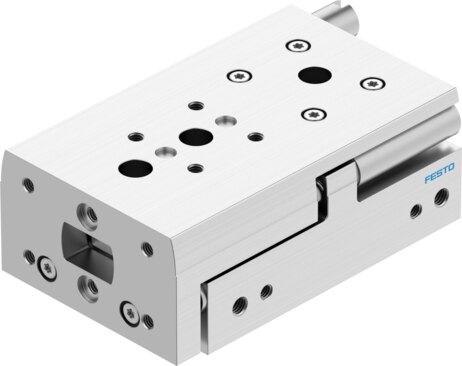

Name: Festo 8085172 Mini slide DGST-12-40-Y12A
Brand: Festo

Mini slide DGST-12-40-Y12A

The Festo part number 8085172 is a double-acting industrial component featuring a 12 mm piston diameter, a 40 mm stroke, and a yoke drive unit operating mode with a slide, piston rod, and double piston structural design. It incorporates external hydraulic cushioning, a recirculating ball bearing guide, and proximity switch position sensing, operating within a pressure range of 1 bar to 8 bar (14.5 psi to 116 psi) and a maximum speed of 0.8 m/s with a repetition accuracy of 0.02 mm or less. Configured for any mounting position, this unit functions with compressed air as per ISO 8573-1:2010 [7:4:4] within an ambient temperature range of -10 °C to 60 °C and meets ISO 14644-1 cleanroom suitability Class 6. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8085172
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8085172.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 40 mm
Adjustable end-position range/front length: 16.7 mm
Adjustable end-position range/rear length: 15.2 mm
Piston diameter: 12 mm
Drive unit operating mode: Yoke
Cushioning: External hydraulic cushioning
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Double piston | Yoke | Piston rod | Slide
Position sensing: Via proximity switch
Operating pressure: 0.1 MPa...0.8 MPa | 1 bar...8 bar | 14.5 psi...116 psi
Max. speed: 0.8 m/s
Repetition accuracy: <= 0.02 mm
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -10 °C...60 °C
Impact energy in the end positions: 1.4 J
Cushioning length: 5 mm
Max. force Fy: 560 N
Max. force Fz: 560 N
Max. torque Mx: 5.8 Nm
Max. torque My: 5.8 Nm
Max. torque Mz: 5.8 Nm

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8085172. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
