Festo
8085195

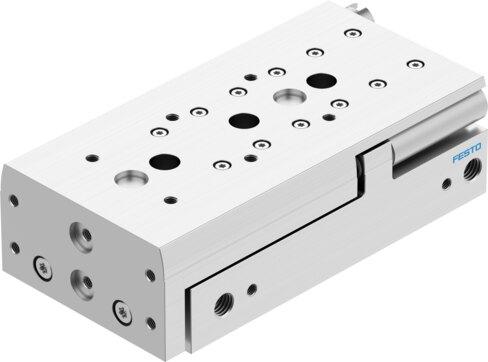

Mini slide DGST-25-100-Y12A
The Festo 8085195 is a double-acting industrial component featuring a 25 mm piston diameter, a 100 mm stroke, and a yoke drive unit with a piston rod and slide. It operates on compressed air within a pressure range of 0.1 MPa to 0.8 MPa (1 bar to 8 bar, or 14.5 psi to 116 psi) and utilizes a ball bearing cage guide, external hydraulic cushioning, and proximity switch position sensing. Designed with an adjustable end-position range of 32 mm at the front length and 30.4 mm at the rear length, it achieves a maximum speed of 0.8 m/s and a repetition accuracy of 0.02 mm or less. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085195
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085195.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 100 mm
- Adjustable end-position range/front length
- 32 mm
- Adjustable end-position range/rear length
- 30.4 mm
- Piston diameter
- 25 mm
- Drive unit operating mode
- Yoke
- Cushioning
- External hydraulic cushioning
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Double piston | Yoke | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar | 14.5 psi...116 psi
- Max. speed
- 0.8 m/s
- Repetition accuracy
- <= 0.02 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 6 J
- Cushioning length
- 10 mm
- Max. force Fy
- 1160 N
- Max. force Fz
- 1160 N
- Max. torque Mx
- 18 Nm
- Max. torque My
- 11 Nm
- Max. torque Mz
- 11 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8085195. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
