Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

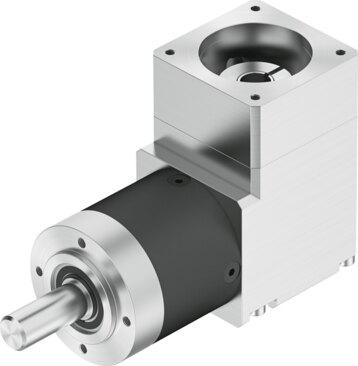

Reference imageConfirm configuration by manufacturer part number.
Festo
8085343
Gear unit EMGA-40-A-G5-40P
The Festo 8085343 is an industrial miter gear unit featuring a 5:1 gear ratio, a 40 mm gearbox and motor flange size, and a 40G output shaft interface alongside a 40P actuator interface. This component delivers a continuous output torque of 7.5 Nm, a maximum output torque of 12 Nm, a mass moment of inertia of 0.035 kgcm², and a maximum actuator speed of 18000 rpm while maintaining up to 95% maximum efficiency and a torsional backlash of 0.35 deg. Weighing 500 g with RoHS-compliant materials, an IP54 degree of protection, and VDMA24364-B2-L LABS conformity, the assembly operates within a temperature range of -25 °C to 90 °C and supports 200 N of both permissible axial and radial shaft load. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085343
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085343.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 40 mm
- Motor ange size
- 40 mm
- Torsional backlash
- 0.35 deg
- Gearbox type
- Miter gears
- Gear ratio
- 5:1
- Max. actuator speed
- 18000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 7.5 Nm
- Mass moment of inertia, gearbox
- 0.035 kgcm²
- Max. output torque
- 12 Nm
- Max. efficiency
- 95 %
- Torsional rigidity
- 0.8 Nm/arcmin
- Product weight
- 500 g
- Permissible axial shaft load
- 200 N
- Permissible radial shaft load
- 200 N
- Gearbox interface, output shaft
- 40G
- Gearbox interface, actuator
- 40P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8085343. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
