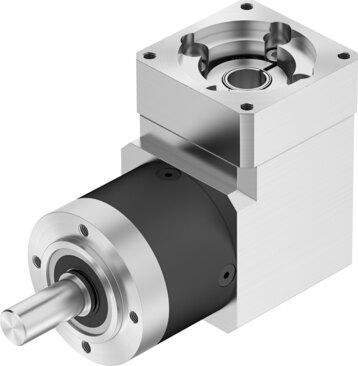

Reference imageConfirm configuration by manufacturer part number.
Festo
8085344
Gear unit EMGA-60-A-G3-60P
The Festo 8085344 is an industrial miter gear component featuring a 3:1 gear ratio, a 60 mm gearbox and motor flange size, and a 60G output shaft interface alongside a 60P actuator interface. This assembly delivers a continuous output torque of 14 Nm, a maximum output torque of 22 Nm, a maximum actuator speed of 13000 rpm, and a maximum efficiency of 95 percent while maintaining a torsional backlash of 0.27 degrees and a torsional rigidity of 2 Nm/arcmin. Weighing 1700 g with a gearbox mass moment of inertia of 0.394 kgcm², the unit supports an IP54 degree of protection, operates across temperatures from -25 °C to 90 °C, and accommodates a permissible axial shaft load of 500 N and radial shaft load of 400 N in compliance with VDMA24364-B2-L LABS conformity and RoHS material standards. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085344
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085344.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 60 mm
- Motor ange size
- 60 mm
- Torsional backlash
- 0.27 deg
- Gearbox type
- Miter gears
- Gear ratio
- 3:1
- Max. actuator speed
- 13000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 14 Nm
- Mass moment of inertia, gearbox
- 0.394 kgcm²
- Max. output torque
- 22 Nm
- Max. efficiency
- 95 %
- Torsional rigidity
- 2 Nm/arcmin
- Product weight
- 1700 g
- Permissible axial shaft load
- 500 N
- Permissible radial shaft load
- 400 N
- Gearbox interface, output shaft
- 60G
- Gearbox interface, actuator
- 60P
- Note on materials
- RoHS compliant
