Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

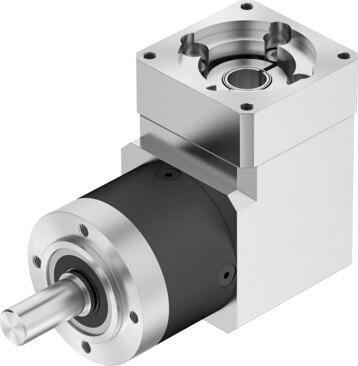

Reference imageConfirm configuration by manufacturer part number.
Festo
8085345
Gear unit EMGA-60-A-G5-60P
The Festo 8085345 is an industrial miter gear unit featuring a 5:1 gear ratio, a 60 mm gearbox flange size, and a 60 mm motor flange size. It delivers a continuous output torque of 24 Nm, a maximum output torque of 38 Nm, and operates at a maximum actuator speed of 13000 rpm within a temperature range of -25 °C to 90 °C. Designed with an IP54 degree of protection, 0.27 degree torsional backlash, and VDMA24364-B2-L LABS conformity, this RoHS-compliant component weighs 1700 g and supports a maximum efficiency of 95 percent. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085345
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085345.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 60 mm
- Motor ange size
- 60 mm
- Torsional backlash
- 0.27 deg
- Gearbox type
- Miter gears
- Gear ratio
- 5:1
- Max. actuator speed
- 13000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 24 Nm
- Mass moment of inertia, gearbox
- 0.257 kgcm²
- Max. output torque
- 38 Nm
- Max. efficiency
- 95 %
- Torsional rigidity
- 1.9 Nm/arcmin
- Product weight
- 1700 g
- Permissible axial shaft load
- 500 N
- Permissible radial shaft load
- 400 N
- Gearbox interface, output shaft
- 60G
- Gearbox interface, actuator
- 60P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8085345. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
