Festo
8085346

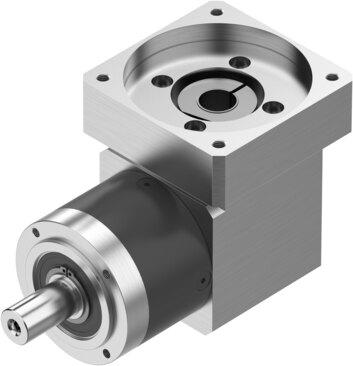

Gear unit EMGA-80-A-G3-80P
The Festo 8085346 is an industrial component featuring an 80 mm gearbox and motor flange size with a 3:1 miter gear ratio, delivering a continuous output torque of 40 Nm and a maximum output torque of 64 Nm. This unit achieves a maximum actuator speed of 7000 rpm, a maximum efficiency of 95 percent, and a torsional backlash of 0.22 degrees, supported by a torsional rigidity of 5 Nm/arcmin and a mass moment of inertia of 1.409 kgcm². Operating within a temperature range of -25 °C to 90 °C, the 4300 g assembly provides an IP54 degree of protection, VDMA24364-B2-L LABS conformity, RoHS compliance, and accommodates a permissible axial shaft load of 1000 N alongside a radial shaft load of 750 N via its 80P actuator and 80G output shaft interfaces. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085346
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085346.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 80 mm
- Motor ange size
- 80 mm
- Torsional backlash
- 0.22 deg
- Gearbox type
- Miter gears
- Gear ratio
- 3:1
- Max. actuator speed
- 7000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 40 Nm
- Mass moment of inertia, gearbox
- 1.409 kgcm²
- Max. output torque
- 64 Nm
- Max. efficiency
- 95 %
- Torsional rigidity
- 5 Nm/arcmin
- Product weight
- 4300 g
- Permissible axial shaft load
- 1000 N
- Permissible radial shaft load
- 750 N
- Gearbox interface, output shaft
- 80G
- Gearbox interface, actuator
- 80P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8085346. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
