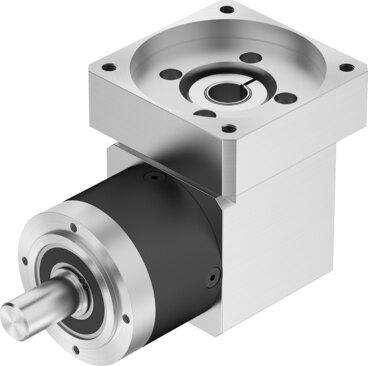

Reference imageConfirm configuration by manufacturer part number.
Festo
8085348
Gear unit EMGA-80-A-G3-100A
The Festo 8085348 industrial component is a 3:1 ratio miter gear unit featuring an 80 mm gearbox flange size, a 100 mm motor flange size, and an IP54 degree of protection. This RoHS-compliant assembly delivers a continuous output torque of 40 Nm, a maximum output torque of 64 Nm, a maximum efficiency of 95 percent, and a maximum actuator speed of 7000 rpm across an operating temperature range of -25 °C to 90 °C. It supports a permissible axial shaft load of 1000 N, a permissible radial shaft load of 750 N, and a mass moment of inertia of 1.409 kgcm² with a product weight of 4500 g. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085348
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085348.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 80 mm
- Motor ange size
- 100 mm
- Torsional backlash
- 0.22 deg
- Gearbox type
- Miter gears
- Gear ratio
- 3:1
- Max. actuator speed
- 7000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 40 Nm
- Mass moment of inertia, gearbox
- 1.409 kgcm²
- Max. output torque
- 64 Nm
- Max. efficiency
- 95 %
- Torsional rigidity
- 5 Nm/arcmin
- Product weight
- 4500 g
- Permissible axial shaft load
- 1000 N
- Permissible radial shaft load
- 750 N
- Gearbox interface, output shaft
- 80G
- Gearbox interface, actuator
- 100A
- Note on materials
- RoHS compliant
