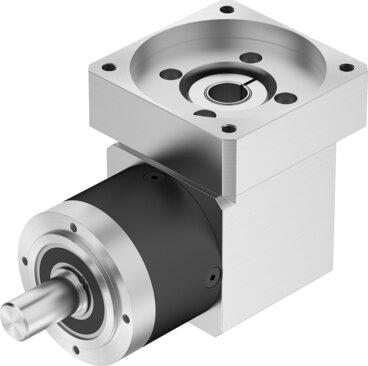

Reference imageConfirm configuration by manufacturer part number.
Festo
8085349
Gear unit EMGA-80-A-G5-100A
The Festo 8085349 is an industrial miter gear component featuring an 80 mm gearbox flange size, a 100 mm motor flange size, and a 5:1 gear ratio delivering a continuous output torque of 67 Nm and a maximum output torque of 107 Nm. It operates at a maximum actuator speed of 7000 rpm within a temperature range of -25 °C to 90 °C, offering a maximum efficiency of 95 percent, 0.22 degrees of torsional backlash, and an IP54 degree of protection. This RoHS-compliant unit weighs 4500 g with a mass moment of inertia of 1.017 kgcm² and accommodates a permissible axial shaft load of 1000 N alongside a permissible radial shaft load of 750 N. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085349
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085349.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 80 mm
- Motor ange size
- 100 mm
- Torsional backlash
- 0.22 deg
- Gearbox type
- Miter gears
- Gear ratio
- 5:1
- Max. actuator speed
- 7000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 67 Nm
- Mass moment of inertia, gearbox
- 1.017 kgcm²
- Max. output torque
- 107 Nm
- Max. efficiency
- 95 %
- Torsional rigidity
- 4.8 Nm/arcmin
- Product weight
- 4500 g
- Permissible axial shaft load
- 1000 N
- Permissible radial shaft load
- 750 N
- Gearbox interface, output shaft
- 80G
- Gearbox interface, actuator
- 100A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8085349. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
