Festo
8085674

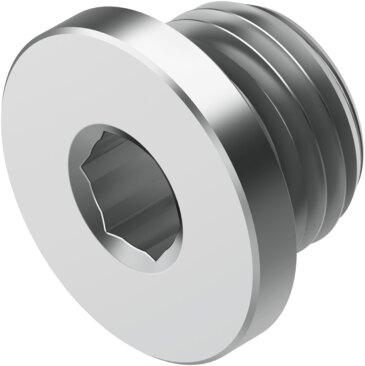

Plug screw NPQR-BK-G14
The Festo part number 8085674 is a standard plug screw industrial component featuring a sealing ring and internal hexagon AF 6 mounting type with a nominal tightening torque of 7.5 Nm at a ±20% tolerance. It operates across a pressure range of -0.095 MPa to 1.6 MPa for compressed air and up to 0.7 MPa for water at 0 to 80 °C, within an ambient temperature range of -20 °C to 150 °C. Rated with a corrosion resistance class of 4 and NSF C0556009 certification, this 11 g component is suitable for Li-ion battery production and uses with compressed air or liquid water. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085674
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085674.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Plug screw
- Pack size
- 1
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Information on operating pressure
- Water: max. 0.7 MPa at 0 - 80 °C
- Certicate issuing authority
- NSF C0556009
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- For use in the food industry
- See declaration of conformity | NSF/ANSI 169
- Ambient temperature
- -20 °C...150 °C
- Nominal tightening torque
- 7.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 11 g
- Type of mounting
- Internal hexagon, AF 6
- Pneumatic connection 1
- External thread G1/4
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Material of threaded seal
- FPM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8085674. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
