8085708

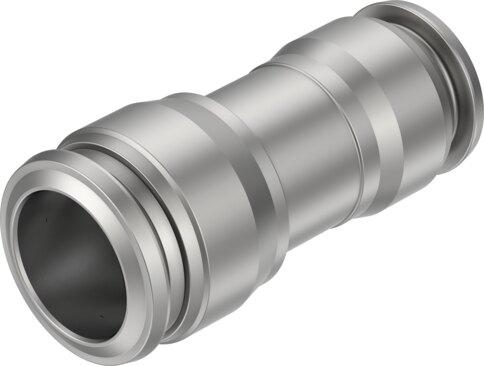

Name: Festo 8085708 Plug connector NPQR-D-Q16-Q12
Brand: Festo

Plug connector NPQR-D-Q16-Q12

The Festo industrial component, part number 8085708, is a straight-design fitting featuring a standard size, an 11 mm nominal width, and a push-pull structural design with a tubing insertion depth of 22.5 mm for Ø12 and 23.5 mm for Ø16. It operates across any mounting position within a pressure range of -0.095 MPa to 1.2 MPa (-0.95 bar to 12 bar / -13.775 psi to 174 psi) for compressed air and water, supporting ambient temperatures from -5 °C to 150 °C. The unit holds an NSF C0556009 certificate, a CRC rating of 4 for particularly high corrosion stress, and meets ISO 14644-1 Class 4 cleanroom suitability alongside VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8085708
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8085708.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Standard
Nominal width: 11 mm
Tubing insertion depth: 22.5 mm...23.5 mm
Note on the tubing insertion depth: Ø12 depth 22.5 mm | Ø16 depth 23.5 mm
Mounting position: Any
Design: Straight design
Pack size: 1
Structural design: Push-pull principle
Operating pressure for entire temperature range: -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
Information on operating pressure: Water: max. 0.7 MPa at 0 - 80 °C
Certicate issuing authority: NSF C0556009
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 4 - Particularly high corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
For use in the food industry: See declaration of conformity | NSF/ANSI 169
Ambient temperature: -5 °C...150 °C
Note on ambient temperature: With PUN-H: -10 °C - 60 °C
Product weight: 63.7 g
Pneumatic connection 1: for pneumatic tubing outside diameter 16 mm
Pneumatic connection 2: for pneumatic tubing outside diameter 12 mm
Releasing ring color: Silver
Note on materials: RoHS compliant
Housing material: high-alloy stainless steel
Guard ring material: high-alloy stainless steel
Releasing ring material: high-alloy stainless steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8085708. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
