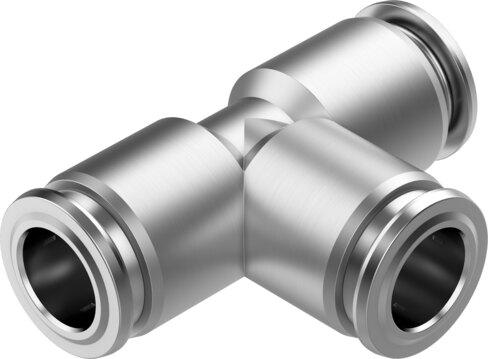

Reference imageConfirm configuration by manufacturer part number.
Festo
8085719
Plug connector NPQR-T-Q10-E
The Festo part number 8085719 is a standard T-shaped industrial component featuring a 9 mm nominal width, a 15.1 mm tubing insertion depth, and a pneumatic connection 1 for 10 mm outside diameter pneumatic tubing utilizing a push-pull structural design for installation in any mounting position. Operating across a pressure range of -0.095 MPa to 1.6 MPa for compressed air and up to 0.7 MPa for water at 0 to 80 °C, this unit accommodates lubricated operation, withstands ambient temperatures from -20 °C to 150 °C, and meets NSF C0556009 and NSF/ANSI 169 standards with a CRC 4 corrosion resistance class, VDMA24364-B2-L LABS conformity, reduced Cu/Zn/Ni battery production suitability, and ISO 14644-1 Class 4 cleanroom suitability. Weighing 37.7 g and supplied in a pack size of 1, this component delivers verified operational capabilities. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085719
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085719.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 9 mm
- Tubing insertion depth
- 15.1 mm
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Information on operating pressure
- Water: max. 0.7 MPa at 0 - 80 °C
- Certicate issuing authority
- NSF C0556009
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- For use in the food industry
- See declaration of conformity | NSF/ANSI 169
- Ambient temperature
- -20 °C...150 °C
- Product weight
- 37.7 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 10 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Guard ring material
- high-alloy stainless steel
- Releasing ring material
- high-alloy stainless steel
- Material of tubing seal
- FPM
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8085719. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
