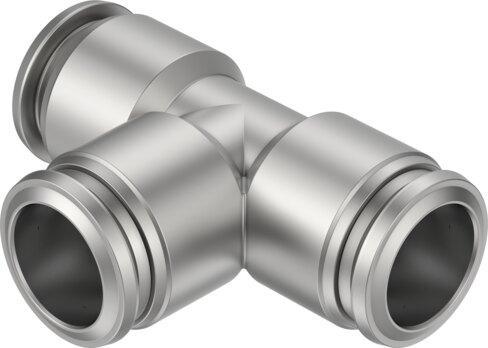

Reference imageConfirm configuration by manufacturer part number.
Festo
8085722
Plug connector NPQR-T-Q16-E
The Festo 8085722 is a standard industrial component featuring a T-shape design with a 16 mm nominal width and a 23.5 mm tubing insertion depth, weighing 114.7 g. Utilizing a push-pull structural design for any mounting position, it operates across a pressure range of -0.095 MPa to 1.2 MPa for compressed air and up to 0.7 MPa for water at 0 to 80 °C, with an ambient temperature range of -5 °C to 150 °C. This unit achieves a corrosion resistance class of 4, meets ISO 14644-1 cleanroom Class 4 standards, complies with VDMA24364-B2-L LABS conformity, and is certified by NSF C0556009. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085722
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085722.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 16 mm
- Tubing insertion depth
- 23.5 mm
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Information on operating pressure
- Water: max. 0.7 MPa at 0 - 80 °C
- Certicate issuing authority
- NSF C0556009
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- For use in the food industry
- See declaration of conformity | NSF/ANSI 169
- Ambient temperature
- -5 °C...150 °C
- Note on ambient temperature
- With PUN-H: -20 °C - 60 °C
- Product weight
- 114.7 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 16 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 16 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Guard ring material
- high-alloy stainless steel
- Releasing ring material
- high-alloy stainless steel
- Material of tubing seal
- FPM
