Festo
8085741
Connecting cable NEBC-M12G5-S-1,5-N-M12G5
This industrial component from Festo, part number 8085741, is an accessory cable weighing 163 g with a DC operating voltage range of 0 V to 30 V and a contact durability of 500 mating cycles. Both electrical connection 1 for the field device side and electrical connection 2 for the control side feature a round, straight plug design with M12x1 A-coded connection technology as per EN 61076-2-101, screw-type locking, and 5 occupied pins out of 5 total pins. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8085741
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8085741.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- With accessories
- Contact durability
- 500
- Product weight
- 163 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight

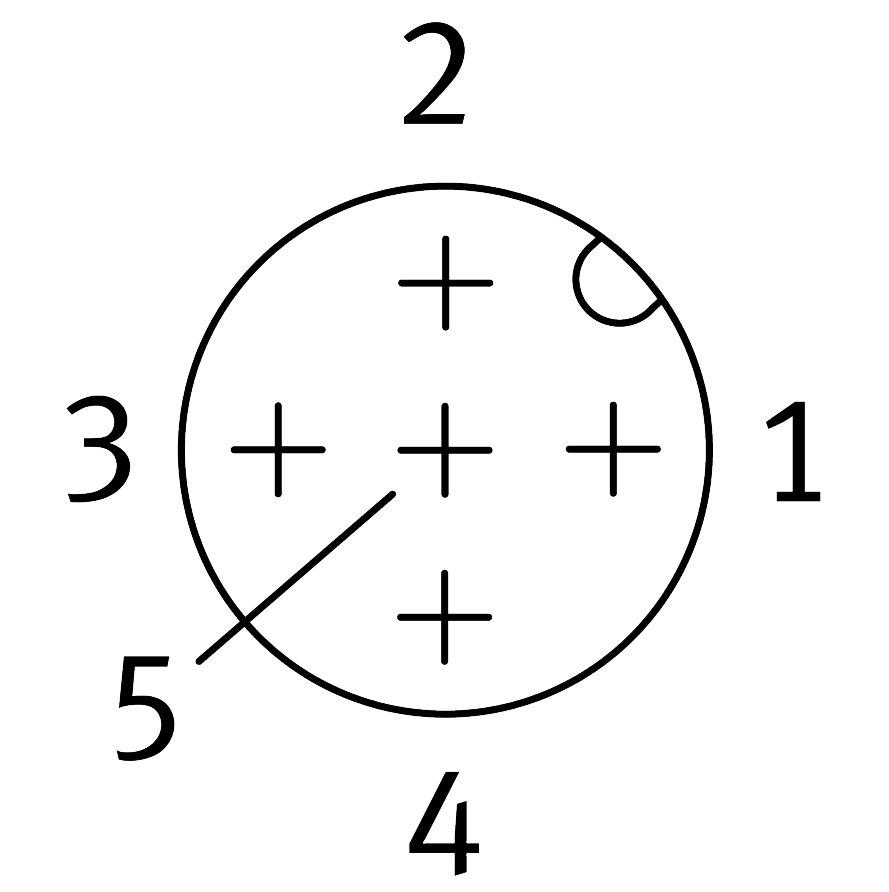

- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 5
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, number of pins/wires
- 5
- Electrical connection 2, occupied pins/wires
- 5
- Electrical connection 2, type of mounting
- Screw-type lock
- DC operating voltage range
- 0 V...30 V
- Operating voltage range AC
- 0 V...30 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 0.8 kV
- Shield
- Yes
- Cable length
- 1.5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Cable diameter
- 5 mm
- Cable design
- 4 x 0.34 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8085741. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
