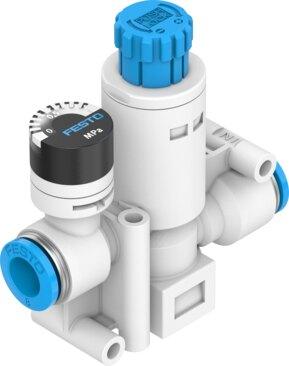

Reference imageConfirm configuration by manufacturer part number.
Festo
8086003
Pressure regulator VRPA-CM-Q4-E
The Festo part number 8086003 is an industrial component featuring a constant output pressure controller function with secondary exhausting and a return flow characteristic, utilizing QS-4 pneumatic connections for both ports 1 and 2. Constructed with a PBT housing and a weight of 23 g, this device operates within an ambient temperature range of 0 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4] and includes a manual rotary knob with a latch for adjusting pressures between 1 bar and 8 bar (0.1 MPa to 0.8 MPa or 14.5 psi to 116 psi). Additional specifications include an integrated pressure gauge, a normal nominal flow rate of 80 l/min, through-hole mounting capability in any position, and compliance with VDMA24364-B2-L LABS conformity alongside ISO 14644-1 Class 4 cleanroom suitability. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8086003
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8086003.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Controller function
- Constant output pressure | With secondary exhausting | With return ow characteristic
- Pneumatic connection 1
- QS-4
- Pneumatic connection 2
- QS-4
- Type of mounting
- With through-hole
- Normal nominal ow rate (normalized to DIN 1343)
- 80 l/min
- Ambient temperature
- 0 °C...60 °C
- Housing material
- PBT
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Mounting position
- Any
- Actuation type
- Manual
- Adjusting element
- Rotary knob with latch
- Pressure gauge
- with pressure gauge
- Pressure regulation range MPa
- 0.1 MPa...0.8 MPa
- Pressure regulation range
- 1 bar...8 bar
- Pressure regulation range psi
- 14.5 psi...116 psi
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Product weight
- 23 g
- Note on materials
- RoHS compliant
- Static seal material
- NBR
