Festo
8086004

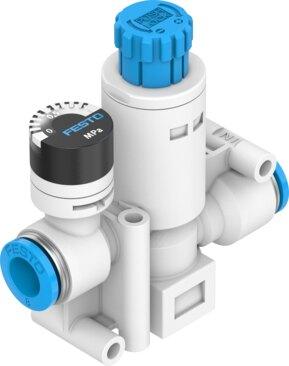

Pressure regulator VRPA-CM-Q6-E
The Festo 8086004 is an industrial component featuring a constant output pressure controller function with secondary exhausting and a return flow characteristic, alongside QS-6 pneumatic connections on both ports. Constructed with a PBT housing and weighing 23 g, this manual actuation unit operates on compressed air as per ISO 8573-1:2010 [7:4:4] across a pressure regulation range of 1 bar to 8 bar (0.1 MPa to 0.8 MPa, 14.5 psi to 116 psi) with an integrated pressure gauge and a rotary knob with latch for the adjusting element. It is configured for through-hole mounting in any position, supports a normal nominal flow rate of 90 l/min, and is compliant with RoHS and VDMA24364-B2-L LABS conformity standards while achieving ISO 14644-1 Class 4 cleanroom suitability. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8086004
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8086004.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Controller function
- Constant output pressure | With secondary exhausting | With return ow characteristic
- Pneumatic connection 1
- QS-6
- Pneumatic connection 2
- QS-6
- Type of mounting
- With through-hole
- Normal nominal ow rate (normalized to DIN 1343)
- 90 l/min
- Ambient temperature
- 0 °C...60 °C
- Housing material
- PBT
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Mounting position
- Any
- Actuation type
- Manual
- Adjusting element
- Rotary knob with latch
- Pressure gauge
- with pressure gauge
- Pressure regulation range MPa
- 0.1 MPa...0.8 MPa
- Pressure regulation range
- 1 bar...8 bar
- Pressure regulation range psi
- 14.5 psi...116 psi
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Product weight
- 23 g
- Note on materials
- RoHS compliant
- Static seal material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8086004. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
