Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8086006

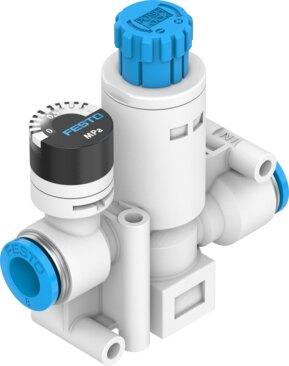

Pressure regulator VRPA-CM-T14-E
The Festo part number 8086006 is an industrial component featuring a constant output pressure controller function with secondary exhausting and a return flow characteristic, utilizing QS-1/4 pneumatic connections for both port 1 and port 2. Constructed with a PBT housing and weighing 23 g, this unit operates within a temperature range of 0 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4], and includes an integrated pressure gauge adjustable via a manual rotary knob with a latch across a regulation range of 1 bar to 8 bar. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8086006
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8086006.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Controller function
- Constant output pressure | With secondary exhausting | With return ow characteristic
- Pneumatic connection 1
- QS-1/4
- Pneumatic connection 2
- QS-1/4
- Type of mounting
- With through-hole
- Normal nominal ow rate (normalized to DIN 1343)
- 95 l/min
- Ambient temperature
- 0 °C...60 °C
- Housing material
- PBT
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Mounting position
- Any
- Actuation type
- Manual
- Adjusting element
- Rotary knob with latch
- Pressure gauge
- with pressure gauge
- Pressure regulation range MPa
- 0.1 MPa...0.8 MPa
- Pressure regulation range
- 1 bar...8 bar
- Pressure regulation range psi
- 14.5 psi...116 psi
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Product weight
- 23 g
- Note on materials
- RoHS compliant
- Static seal material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8086006. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
