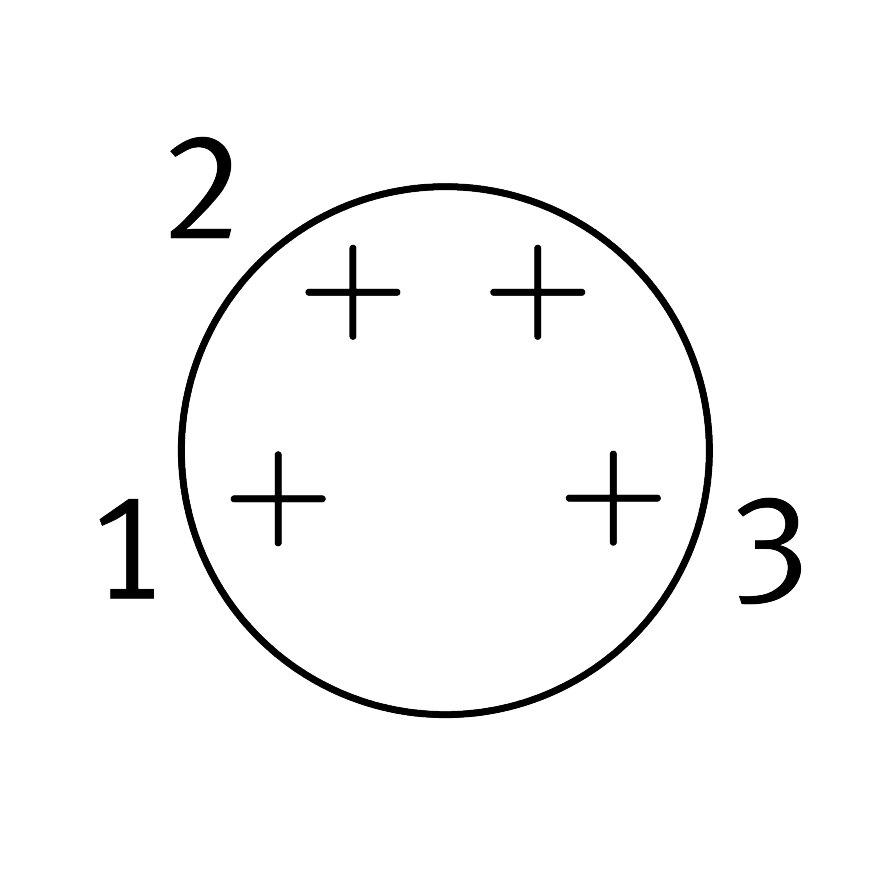

Reference imageConfirm configuration by manufacturer part number.
Festo
8086524
Connecting cable NEBC-M8G4-ES-2.5-N-SB-S1G9-RS2-S7
This Festo industrial component, part number 8086524, features an RS232 protocol and comes equipped with accessories for any mounting position across a 0 V to 24 V DC operating voltage range. The field device side utilizes a straight, round plug with an M8x1 A-coded 4-pin connection as per EN 61076-2-104, a screw-type lock, and 3 occupied wires. On the control side, electrical connection 2 incorporates a straight, square Sub-D socket with 9 pins, 8 occupied wires, and 2x 4-40 UNC screw mounting. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8086524
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8086524.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protocol
- RS232
- Cable designation
- With accessories
- Mounting position
- Any
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 3
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Socket
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Sub-D
- Electrical connection 2, number of pins/wires
- 9
- Electrical connection 2, occupied pins/wires
- 8
- Electrical connection 2, type of mounting
- 2x 4-40 UNC screw
- DC operating voltage range
- 0 V...24 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 1.5 kV
- Shield
- Yes
- Cable length
- 2.5 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 24 mm
- Bending radius, exible cable installation
- 47 mm
