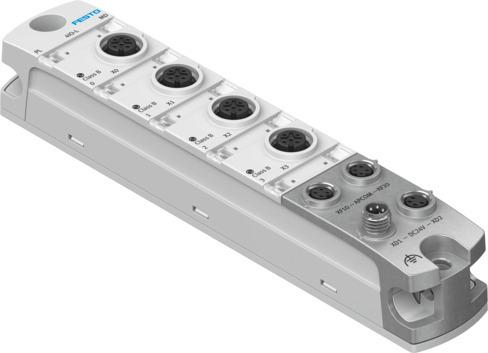

Reference imageConfirm configuration by manufacturer part number.
Festo
8086604
IO-Link Master CPX-AP-I-4IOL-M12
The Festo 8086604 is an industrial component featuring IO-Link protocol integration and measuring 30 mm by 170 mm by 35 mm with a product weight of 126 g. Designed for mounting via through-hole or on an H-rail using accessories, it operates within an ambient temperature range of -20 °C to 60 °C and achieves an IP65 and IP67 degree of protection when unused connections are sealed. It complies with EU and UK EMC and RoHS directives, holds KC-EMV markings, and features a maximum cable length of 20 m for IO-Link operation and 50 m for system communication. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8086604
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8086604.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protocol
- IO-Link®
- Dimensions W x L x H
- 30 mm x 170 mm x 35 mm
- Type of mounting
- On H-rail with accessories | With through-hole
- Product weight
- 126 g
- Ambient temperature
- -20 °C...60 °C
- Storage temperature
- -40 °C...70 °C
- Relative air humidity
- 5 - 95% | Non-condensating
- Degree of protection
- IP65 | IP67
- Note on degree of protection
- Unused connections sealed
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- Contamination level
- 2
- Overvoltage category
- II
- Max. cable length
- 20 m for IO-Link® operation | 50 m system communication
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- Certicate issuing authority
- UL E239998
- Note on materials
- RoHS compliant
- Housing material
- PA | PC
