Festo
8086608

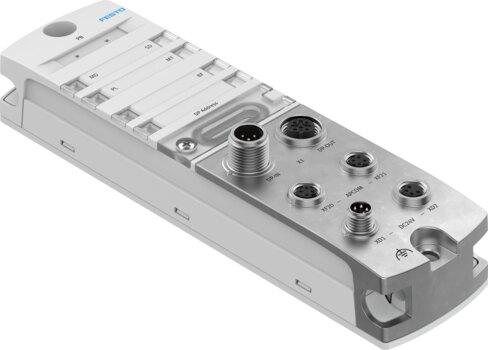

PROFIBUS interface CPX-AP-I-PB-M12
The Festo industrial component, part number 8086608, weighs 186 g and measures 45 mm x 170 mm x 35 mm with a housing constructed from PA, PC, and nickel-plated die-cast zinc featuring FPM O-rings. It supports up to 56 modules, offers IP65 and IP67 degrees of protection, and accommodates mounting via through-hole or on an H-rail using accessories. The unit operates within an ambient temperature range of -20 °C to 60 °C, withstands storage temperatures from -40 °C to 70 °C, and complies with EU EMC and UKCA directives, holding c UL us - Listed (OL) and RCM certifications. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8086608
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8086608.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- 45 mm x 170 mm x 35 mm
- Type of mounting
- On H-rail with accessories | With through-hole
- Max. number of modules
- 56
- Product weight
- 186 g
- Ambient temperature
- -20 °C...60 °C
- Storage temperature
- -40 °C...70 °C
- Relative air humidity
- 5 - 95% | Non-condensating
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Max. cable length
- 50 m system communication
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC
- KC characters
- KC-EMV
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- Certicate issuing authority
- UL E239998
- Note on materials
- RoHS compliant
- Housing material
- PA | PC | Die-cast zinc, nickel-plated
- O-ring material
- FPM
- Diagnostics via LED
- Buffer error LED (BF) | Diagnostics per module | Power supply for electronics/sensors | Load power supply | System diagnostics | Maintenance required
- Diagnostics via bus
- APDD invalid | Load switch-off
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8086608. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
