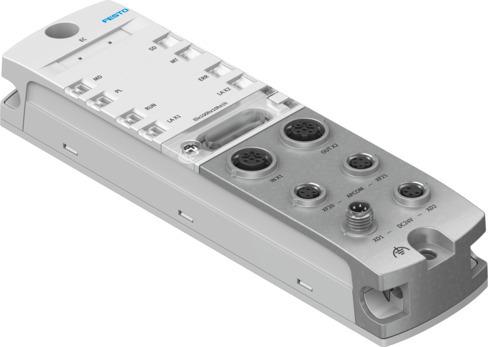

Reference imageConfirm configuration by manufacturer part number.
Festo
8086609
EtherCAT interface CPX-AP-I-EC-M12
The Festo industrial component, part number 8086609, measures 45 mm in width, 170 mm in length, and 35 mm in height with a product weight of 186 g. It supports up to 80 modules, features a degree of protection of IP65 and IP67 when unused connections are sealed, and operates within an ambient temperature range of -20 °C to 60 °C. Mounting is accomplished via H-rail with accessories or through-hole, while compliance is backed by CE, UKCA, KC, RCM, and cULus listings. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8086609
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8086609.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- 45 mm x 170 mm x 35 mm
- Type of mounting
- On H-rail with accessories | With through-hole
- Max. number of modules
- 80
- Product weight
- 186 g
- Ambient temperature
- -20 °C...60 °C
- Storage temperature
- -40 °C...70 °C
- Relative air humidity
- 5 - 95% | Non-condensating
- Degree of protection
- IP65 | IP67
- Note on degree of protection
- Unused connections sealed
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Max. cable length
- 50 m system communication
- Information on max. cable length
- Power supply according to nominal voltage
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC
- KC characters
- KC-EMV
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- Certicate issuing authority
- UL E239998
- Note on materials
- RoHS compliant
- Housing material
- PA | PC | Die-cast zinc, nickel-plated
- O-ring material
- FPM
- Diagnostics via LED
- Diagnostics per module | EtherCAT RUN | Power supply for electronics/sensors | Load power supply | System diagnostics | Maintenance required
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8086609. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
