Festo
8086639

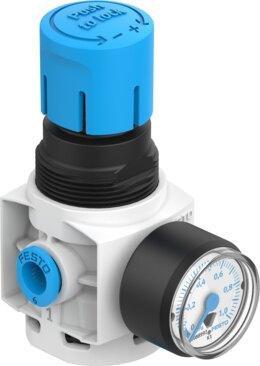

Pressure regulator MS2-LR-QS6-D6-AR-MPA-B
The Festo 8086639 is an industrial component from the MS series, size 2, featuring a directly controlled diaphragm regulator with a rotary knob with detent actuator lock and an integrated pressure gauge displaying in MPa. This unit provides constant output pressure with secondary exhausting and a return flow characteristic, operating within a pressure range of 0.1 MPa to 0.8 MPa and a regulation range of 0.5 bar to 7 bar with a maximum pressure hysteresis of 0.025 MPa. It accommodates a normal nominal flow rate of 350 l/min using compressed air as per ISO 8573-1:2010 [7:4:4] or inert gases, weighs 36.1 g, and is rated for a storage, medium, and ambient temperature of -5 °C to 50 °C in any mounting position. Additional verified specifications include a corrosion resistance class of 1, VDMA24364-B1/B2-L LABS conformity, and ISO 14644-1 Class 6 cleanroom suitability. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8086639
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8086639.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 2
- Series
- MS
- Actuator lock
- Rotary knob with detent
- Mounting position
- Any
- Structural design
- Directly controlled diaphragm regulator
- Controller function
- Constant output pressure | With secondary exhausting | With return ow characteristic
- Displayable unit(s)
- MPa
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar
- Pressure regulation range
- 0.5 bar...7 bar
- Max. pressure hysteresis
- 0.025 MPa | 0.25 bar | 3.625 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 350 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Storage temperature
- -5 °C...50 °C
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 36.1 g
- Type of mounting
- Alternatively: | Front panel mounting | In-line installation | With accessories
- Pneumatic connection 1
- QS-6
- Pneumatic connection 2
- QS-6
- Note on materials
- RoHS compliant
- Lower cover material
- PA
