Festo
8086643

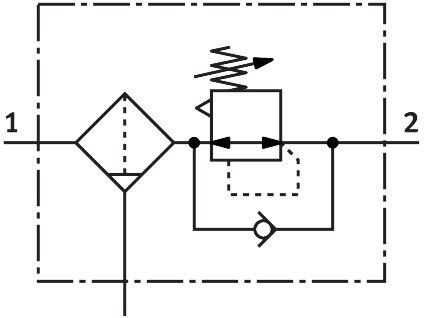

Filter regulator MS2-LFR-M5-D6-C-P-M-A8-B
The Festo 8086643 is an industrial filter regulator of size 2 from the MS series, featuring a structural design without a pressure gauge and a G1/8 setup for a pressure gauge. It provides a constant output pressure with secondary exhausting, a return flow characteristic, a pressure regulation range of 0.5 bar to 7 bar, and a normal nominal flow rate of 140 l/min normalized to DIN 1343. Operating with compressed air per ISO 8573-1:2010 [7:4:4] or inert gases, the unit includes a rotary knob with detent for the actuator lock, a manual rotating condensate drain with a maximum condensate volume of 3 ml, and a 5 µm filtration grade. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8086643
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8086643.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 2
- Series
- MS
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Grade of ltration
- 5 µm
- Condensate drain
- Manual, rotating
- Structural design
- Filter regulator without pressure gauge
- Max. condensate volume
- 3 ml
- Controller function
- Constant output pressure | With secondary exhausting | With return ow characteristic
- Pressure gauge
- Set up for G1/8
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Pressure regulation range
- 0.5 bar...7 bar
- Max. pressure hysteresis
- 0.025 MPa | 0.25 bar | 3.625 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 140 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Storage temperature
- -5 °C...50 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [6:4:4]
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 39 g
- Type of mounting
- Alternatively: | Front panel mounting | In-line installation | With accessories
- Pneumatic connection 1
- M5
