Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

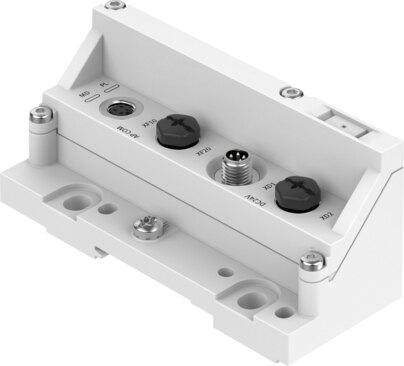

Reference imageConfirm configuration by manufacturer part number.
Festo
8087171
End plate VMPAL-EPL-AP
The Festo part number 8087171 is an industrial component measuring 43.1 mm x 107.5 mm x 50.2 mm with an upward connection position and a plug-type power supply connection. This module supports up to 32 valve positions and 32 solenoid coils within an interchangeable valve size manifold design, operating at a nominal voltage of 24 V DC for both electronics/sensors and load. It features integrated LED diagnostics per module and load power supply, internal electronic short-circuit fuse protection per channel, and internal communication diagnostics for electronics and sensor overvoltage or undervoltage. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8087171
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8087171.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Connection position
- up
- Reverse polarity protection
- Yes
- Diagnostics via LED
- Diagnostics per module | Load power supply
- Diagnose per internal communication
- Electronics/sensors overvoltage | Electronics/sensors undervoltage
- Max. no. of valve positions
- 32
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 32
- Dimensions W x L x H
- 43.1 mm x 107.5 mm x 50.2 mm
- Fuse protection (short circuit)
- Internal electronic fuse per channel
- Intrinsic current consumption at nominal operating voltage for
- Typically 30 mA
- Intrinsic current consumption at nominal operating voltage load
- Typically 15 mA
- Max. power supply
- 2 x 4 A (external fuse required)
- Nominal operating voltage DC for electronics/sensors
- 24 V
- Nominal operating voltage DC load
- 24 V
- Power failure buffering
- 10 ms
- Electrical isolation of outputs between channel - internal communication
- Yes
- Permissible voltage uctuations for electronics/sensors
- ±25%
- Permissible voltage uctuations load
- ±10%
- Power supply, function
- Incoming electronics/sensors and load
- Power supply, type of connection
- Plug
- Power supply, connection technology
- M8x1, A-coded as per EN 61076-2-104
- Power supply, number of pins/wires
- 4
- Voltage forwarding, function
- Outgoing electronics/sensors and load
- Voltage forwarding, connection type
- Socket
- Voltage forwarding, connection technology
- M8x1, A-coded as per EN 61076-2-104
- Voltage forwarding, number of pins/wires
- 4
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8087171. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
