Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

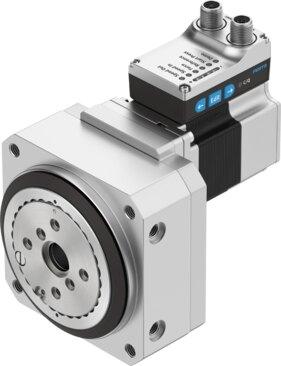

Reference imageConfirm configuration by manufacturer part number.
Festo
8087821
Rotary drive unit ERMS-32-90-ST-M-H1-PLK-AA
The Festo 8087821 is an electromechanical rotary actuator of size 32 featuring an integrated actuator and gearbox with a 7:1 gear ratio. Weighing 2304 g with a 100% duty cycle, this component delivers a max rotational speed of 100 rpm, a torsional backlash of 0.2 deg, and a repetition accuracy of ±0.1° via a motor encoder for position sensing. It supports any mounting position with internal thread mounting and accommodates a max axial force of 450 N, a max radial force of 550 N, and a permissible mass moment of inertia of 0.0164 kgm² with a 1.8 deg step angle and ±5% step angle tolerance. Power is supplied through a 4-pin M12x1 plug utilizing T-coded connection technology as per EN 61076-2-111, alongside a plug-type logic interface. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8087821
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8087821.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Structural design
- Electromechanical rotary actuator | With integrated actuator | With integrated gearbox
- Mounting position
- Any
- Type of mounting
- With internal thread
- Gear ratio
- 7:1
- Max. rotational speed
- 100 rpm
- Torsional backlash
- 0.2 deg
- Repetition accuracy
- ±0.1°
- Position sensing
- Motor encoder
- Max. axial force
- 450 N
- Max. radial force
- 550 N
- Permissible mass moment of inertia
- 0.0164 kgm²
- Product weight
- 2304 g
- Step angle with full step
- 1.8 deg
- Step angle tolerance
- ±5%
- Duty cycle
- 100%
- Power supply, type of connection
- Plug
- Power supply, connection technology
- M12x1, T-coded as per EN 61076-2-111
- Power supply, number of pins/wires
- 4
- Logic interface, connection type
- Plug
- Logic interface, connection technology
- M12x1, A-coded as per EN 61076-2-101
- Logic interface, number of poles/wires
- 8
- Max. cable length
- 15 m outputs | 15 m inputs | 20 m for IO-Link® operation
- DC nominal voltage
- 24 V
- Nominal current
- 5.3 A
- Motor nominal current
- 5 A
- Max. current consumption
- 5.3 A
- Permissible voltage uctuations
- +/-15%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8087821. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
