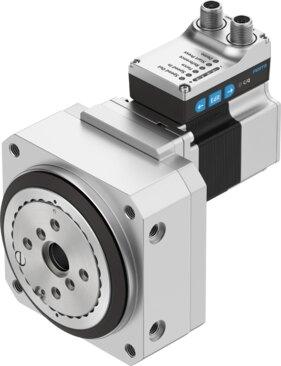

Name: Festo 8087822 Rotary drive unit ERMS-32-180-ST-M-H1-PLK-AA
Brand: Festo

Rotary drive unit ERMS-32-180-ST-M-H1-PLK-AA

The Festo 8087822 is an electromechanical rotary actuator featuring an integrated actuator and gearbox with a size 32 design and a 7:1 gear ratio. Weighing 2304 g with a 100% duty cycle, this component delivers a max rotational speed of 100 rpm, 0.2 deg torsional backlash, and ±0.1° repetition accuracy with a motor encoder for position sensing. It supports any mounting position via internal thread and accommodates a max axial force of 450 N, a max radial force of 550 N, and a permissible mass moment of inertia of 0.0164 kgm². Electrical connections consist of an M12x1, T-coded 4-pin plug for the power supply per EN 61076-2-111 and a plug for the logic interface. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8087822
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8087822.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 32
Structural design: Electromechanical rotary actuator | With integrated actuator | With integrated gearbox
Mounting position: Any
Type of mounting: With internal thread
Gear ratio: 7:1
Max. rotational speed: 100 rpm
Torsional backlash: 0.2 deg
Repetition accuracy: ±0.1°
Position sensing: Motor encoder
Max. axial force: 450 N
Max. radial force: 550 N
Permissible mass moment of inertia: 0.0164 kgm²
Product weight: 2304 g
Step angle with full step: 1.8 deg
Step angle tolerance: ±5%
Duty cycle: 100%
Power supply, type of connection: Plug
Power supply, connection technology: M12x1, T-coded as per EN 61076-2-111
Power supply, number of pins/wires: 4
Logic interface, connection type: Plug
Logic interface, connection technology: M12x1, A-coded as per EN 61076-2-101
Logic interface, number of poles/wires: 8
Max. cable length: 15 m outputs | 15 m inputs | 20 m for IO-Link® operation
DC nominal voltage: 24 V
Nominal current: 5.3 A
Motor nominal current: 5 A
Max. current consumption: 5.3 A
Permissible voltage uctuations: +/-15%

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8087822. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
