Festo
8088297

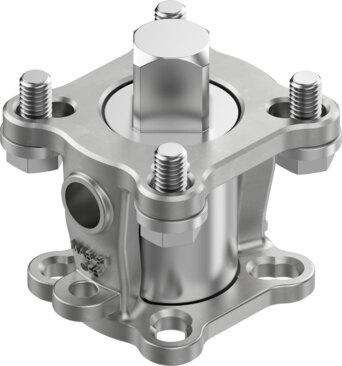

Mounting kit DARQ-K-V-F05S14-F04S11-R1
The Festo 8088297 is an industrial mounting kit featuring a structural design with a square drive and external square, built in accordance with EN 15081 and ISO 5211 norms. Constructed entirely from high-alloy stainless steel components, including the quick-coupling, mounting adapter, disc, and screws, this RoHS-compliant unit provides a CRC 2 moderate corrosion stress rating and VDMA24364-B2-L LABS conformity at a product weight of 342 g. Connection 1 functions as an actuator outlet utilizing an SW14 design with hole pattern 05, while Connection 2 serves as a reducing outlet featuring an SW11 design with hole pattern 04. Submit the exact part number, quantity, and application requirements to receive a quote for this pack size 1 component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8088297
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8088297.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 15081 | ISO 5211
- Pack size
- 1
- Structural design
- Square drive and external square | Mounting kit
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Product weight
- 342 g
- Connection 1, function
- Actuator outlet
- Connection 1, design
- SW14 | Hole pattern 05
- Connection 2, function
- Reducing outlet
- Connection 2, design
- SW11 | Hole pattern 04
- Note on materials
- RoHS compliant
- Quick-coupling material
- high-alloy stainless steel
- Mounting adapter material
- high-alloy stainless steel
- Disc material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8088297. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
