Festo
8088300

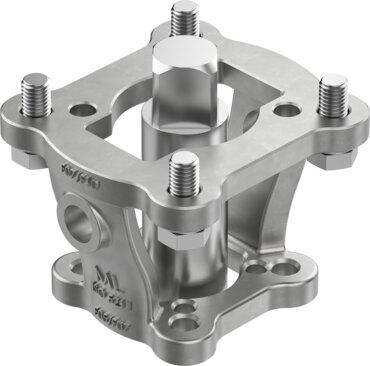

Mounting kit DARQ-K-V-F10S22-F05S14-R1
The Festo part number 8088300 is a 1515 g industrial component structured as a mounting kit with a square drive and external square, manufactured in accordance with EN 15081 and ISO 5211 norms. Constructed entirely from high-alloy stainless steel including the quick-coupling, mounting adapter, disc, and screws, this RoHS compliant unit features a CRC of 2 for moderate corrosion stress and VDMA24364-B2-L LABS conformity. Connection 1 serves as the actuator outlet with an SW22 design and drilling pattern 10, while Connection 2 operates as a reducing outlet utilizing an SW14 design and hole pattern 05. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8088300
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8088300.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 15081 | ISO 5211
- Pack size
- 1
- Structural design
- Square drive and external square | Mounting kit
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Product weight
- 1515 g
- Connection 1, function
- Actuator outlet
- Connection 1, design
- SW22 | Drilling pattern 10
- Connection 2, function
- Reducing outlet
- Connection 2, design
- SW14 | Hole pattern 05
- Note on materials
- RoHS compliant
- Quick-coupling material
- high-alloy stainless steel
- Mounting adapter material
- high-alloy stainless steel
- Disc material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8088300. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
