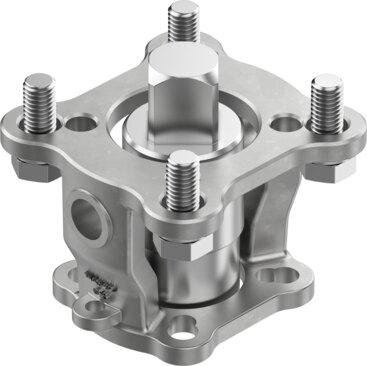

Reference imageConfirm configuration by manufacturer part number.
Festo
8088303
Mounting kit DARQ-K-V-F07S17-F05S14-R1
The Festo part number 8088303 is an industrial component mounting kit based on the EN 15081 and ISO 5211 norms featuring a square drive and external square structural design. Weighing 771 g, this unit is constructed from high-alloy stainless steel screws, a mounting adapter, a disc, and a quick-coupling, providing a corrosion resistance class of 2 for moderate corrosion stress alongside VDMA24364-B2-L LABS conformity and RoHS compliance. Connection 1 functions as an actuator outlet utilizing an SW17 design with hole pattern 07, while Connection 2 serves as a reducing outlet featuring an SW14 design with hole pattern 05 in a pack size of 1. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8088303
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8088303.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 15081 | ISO 5211
- Pack size
- 1
- Structural design
- Square drive and external square | Mounting kit
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Product weight
- 771 g
- Connection 1, function
- Actuator outlet
- Connection 1, design
- SW17 | Hole pattern 07
- Connection 2, function
- Reducing outlet
- Connection 2, design
- SW14 | Hole pattern 05
- Note on materials
- RoHS compliant
- Quick-coupling material
- high-alloy stainless steel
- Mounting adapter material
- high-alloy stainless steel
- Disc material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
