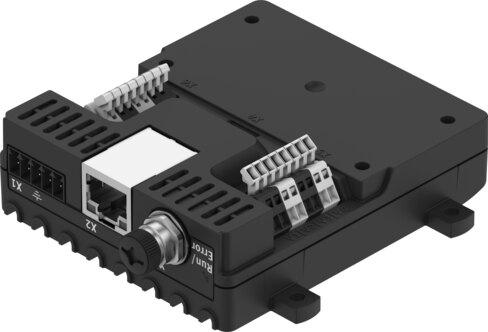

Reference imageConfirm configuration by manufacturer part number.
Festo
8088772
Valve control module VAEM-V-S8EPRS2
The Festo 8088772 is an industrial component measuring 92 mm x 100 mm x 28 mm with a nominal operating voltage of 24 V DC and an intrinsic current consumption of 36 mA. This unit features 8 outputs supporting a load voltage range of 8 V to 24 V, per-output parameterization, and a DIP switch for baud rate control. Diagnostics are provided via LED indicators for error and run states, alongside bus diagnostics that detect wire breaks, short circuits or overloads, parameterization errors, and load supply undervoltage. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8088772
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8088772.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- 92 mm x 100 mm x 28 mm
- Diagnostics via LED
- Error | Run
- Diagnostics via bus
- Wire break at the output | Output short circuit/overload | Parameterization error | Load supply undervoltage
- Mounting position
- Any
- Parameterization
- Parameter setting per output
- Reverse polarity protection
- For operating voltage
- Control elements
- DIP switch for Baud rate
- Intrinsic current consumption at operating voltage
- 36 mA
- Trigger level
- Level 14 V ... 24 V
- Load voltage range DC
- 8 V...24 V
- Max. no. of outputs
- 8
- Inrush current, per output
- 20 mA...1000 mA
- Holding current, per output
- 20 mA...400 mA
- Inrush current, total
- 4 A
- Holding current, total
- 1.8 A
- Pick-up time
- 100 ms
- Time resolution
- 0.2 ms
- Nominal operating voltage DC
- 24 V
- Contamination level
- 2
- Permissible voltage uctuations
- +/- 10%
- Power supply, function
- Digital trigger input | Power supply
- Power supply, type of connection
- Plug
- Power supply, connection technology
- Circuit board connector, RM 3.5 mm
- Power supply, number of pins/wires
- 5
- Communication interface, connection type
- Socket
- Communication interface, connection technology
- M8x1, A-coded as per EN 61076-2-104
- Communication interface, number of pins/wires
- 4
- Communication interface, function
- Parameterization and commissioning
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8088772. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
