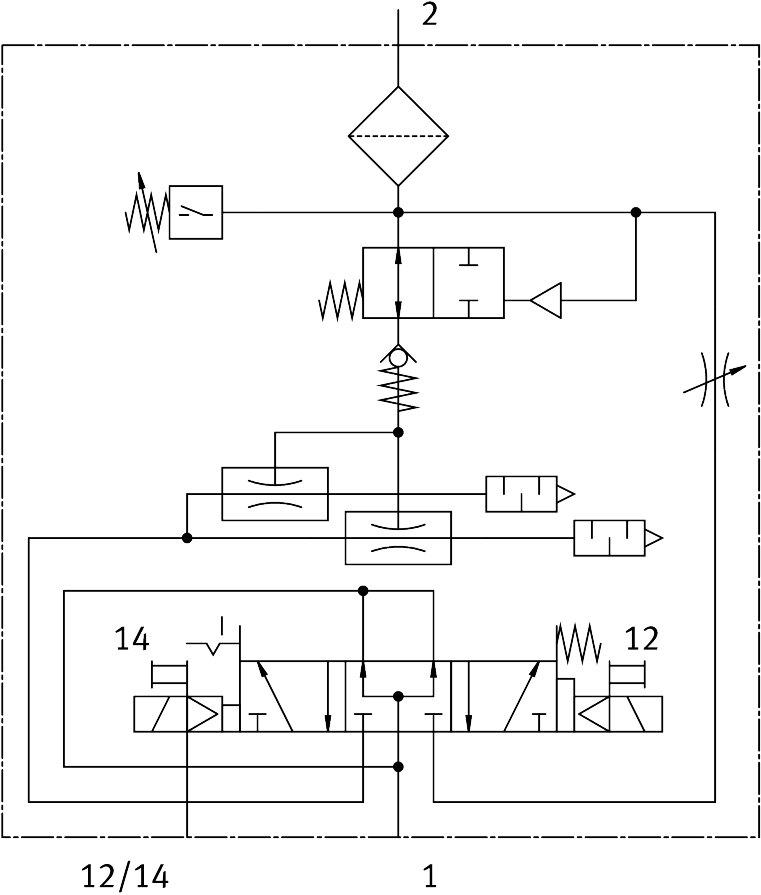

Reference imageConfirm configuration by manufacturer part number.
Festo
8088780
Vacuum generator VABF-S4-2-V2B1-G38-CB-VH-14-AP
The Festo 8088780 is an industrial component featuring a 35 mm width, a 1.4 mm nominal width Laval nozzle, and an open muffler construction type with electrical actuation and reverse polarity protection for all electrical connections. It integrates a flow control valve, electric on-off valve, electric air-saving function, electric power ejector pulse valve, check valve, open muffler, and vacuum switch, while utilizing piezoresistive relative pressure measurement displayed via LED and a 2-digit LED indicator in kPa with a threshold setting range of 0 kPa to 99 kPa and hysteresis from 0 kPa to 90 kPa. This unit operates in any mounting position with a 5/3-way pressurized valve function, high vacuum and standard ejector characteristics, detenting, non-detenting, and covered manual override, and configuration through teach-in or parameter sets. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8088780
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8088780.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 35 mm
- Nominal width of Laval nozzle
- 1.4 mm
- Muffler construction type
- Open
- Actuation type
- Electrical
- Reverse polarity protection
- for all electrical connections
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Manual override
- Detenting | Non-detenting | Covered
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching function
- Window comparator | Threshold value comparator
- Integrated function
- Flow control valve | Electric on-off valve | Electric air-saving function | Power ejector pulse valve, electric | Check valve | Muffler open | Vacuum switch
- Valve function
- 5/3-way, pressurized
- Display type
- LED | LED indicator | 2-digit
- Displayable unit(s)
- KPa
- Setting range threshold value
- 0 kPa...99 kPa
- Setting range hysteresis
- 0 kPa...90 kPa
- Setting options
- Teach-in | Via parameter sets
- Signal status display
- LED
