Festo
8088928

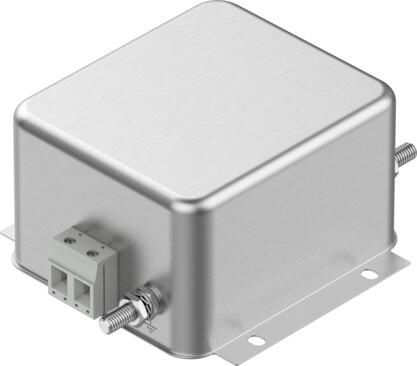

Line filter CAMF-C6-F-C8-3A
The Festo 8088928 industrial component is designed for horizontal mounting on a screwed mounting plate with an IP20 degree of protection and a product weight of 700 g. It operates within an AC voltage range of 0 V to 250 V at a mains frequency of 0 Hz to 400 Hz, featuring an 8 A current rating at 40° C, an insulation voltage of 1100 V, and screw terminal connections via a 2-pin terminal strip. The unit includes ENEC, UL, and cUL recognitions, carries a CE marking per the EU RoHS directive, conforms to VDMA24364 Zone III LABS standards, and functions within a storage and ambient temperature range of -25 °C to 100 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8088928
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8088928.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Short-circuit protection
- No
- Current rating at 40° C
- 8 A
- Operating voltage range AC
- 0 V...250 V
- Mains frequency
- 0 Hz...400 Hz
- Insulation voltage
- 1100 V
- Certication
- ENEC | UL - Recognized (OL) | c UL - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...100 °C
- Degree of protection
- IP20
- Ambient temperature
- -25 °C...100 °C
- Product weight
- 700 g
- Type of mounting
- Mounting plate, screwed on
- Note on materials
- RoHS compliant
- Mounting position
- Horizontal
- Electrical connection 1, function
- Power supply
- Electrical connection 1, connection type
- Terminal strip
- Electrical connection 1, connection technology
- Screw terminal
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, occupied pins/wires
- 2
- Electrical connection 1, conductor cross section
- 4 mm²...6 mm²
- Electrical connection 2, function
- Power supply
- Electrical connection 2, connection type
- Terminal strip
- Electrical connection 2, connection technology
- Screw terminal
- Electrical connection 2, number of pins/wires
- 2
- Electrical connection 2, occupied pins/wires
- 2
- Electrical connection 2, conductor cross section
- 4 mm²...6 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8088928. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
