Festo
8088929

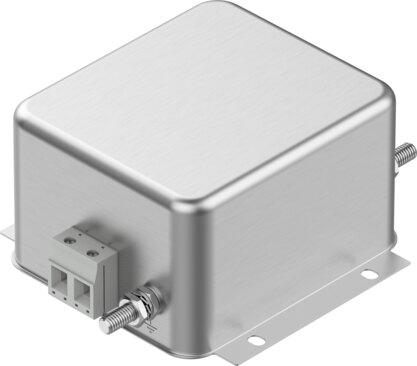

Line filter CAMF-C6-F-C20-3A
The Festo 8088929 industrial component features a 20 A current rating at 40° C and supports an operating voltage range of 0 V to 250 V AC across a mains frequency of 0 Hz to 400 Hz. Weighing 700 g, this unit is designed for horizontal mounting via a screwed-on mounting plate and provides an IP20 degree of protection with an ambient and storage temperature range of -25° C to 100° C. It includes a 2-pin screw terminal strip for power supply connections and carries ENEC, UL, and cUL recognitions alongside CE marking per the EU RoHS directive. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8088929
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8088929.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Short-circuit protection
- No
- Current rating at 40° C
- 20 A
- Operating voltage range AC
- 0 V...250 V
- Mains frequency
- 0 Hz...400 Hz
- Insulation voltage
- 1100 V
- Certication
- ENEC | UL - Recognized (OL) | c UL - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...100 °C
- Degree of protection
- IP20
- Ambient temperature
- -25 °C...100 °C
- Product weight
- 700 g
- Type of mounting
- Mounting plate, screwed on
- Note on materials
- RoHS compliant
- Mounting position
- Horizontal
- Electrical connection 1, function
- Power supply
- Electrical connection 1, connection type
- Terminal strip
- Electrical connection 1, connection technology
- Screw terminal
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, occupied pins/wires
- 2
- Electrical connection 1, conductor cross section
- 4 mm²...6 mm²
- Electrical connection 2, function
- Power supply
- Electrical connection 2, connection type
- Terminal strip
- Electrical connection 2, connection technology
- Screw terminal
- Electrical connection 2, number of pins/wires
- 2
- Electrical connection 2, occupied pins/wires
- 2
- Electrical connection 2, conductor cross section
- 4 mm²...6 mm²
