Festo
8088985

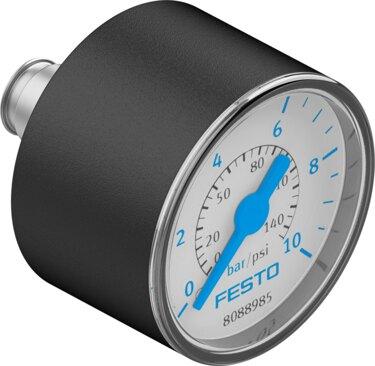

Pressure gauge PAGN-26-10-G18S
The Festo 8088985 is an industrial Bourdon tube pressure gauge featuring a nominal size of 26 and a centered rear-side G1/8 pneumatic connection with a sealing ring. Designed for in-line installation, this component offers a display and operating pressure range of 0 bar to 10 bar (0 MPa to 1 MPa, or 0 psi to 145 psi) for inert gases and neutral liquids, excluding acetylene and oxygen. The assembly incorporates an ABS housing and screwed plug, along with media-contacting components of ABS and brass, achieving an IP43 degree of protection and a measurement accuracy class of 4. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8088985
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8088985.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...10 bar
- Pressure gauge nominal size
- 26
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 4
- Degree of protection
- IP43
- Storage temperature
- -5 °C...50 °C
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- G1/8 with sealing ring
- Materials in contact with the media
- ABS | Brass
- Material of screwed plug
- ABS
- Housing material
- ABS
- Inspection window material
- PS
- Housing colour
- Black
- Product weight
- 8 g
- Scale
- Double scale | bar (außen)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8088985. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
