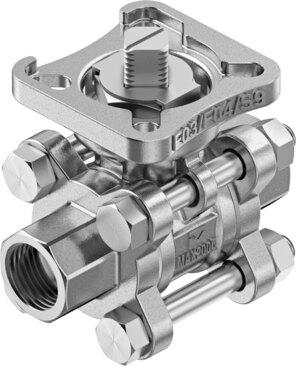

Reference imageConfirm configuration by manufacturer part number.
Festo
8089038
Ball valve VZBE-1/4-WA-63-T-2-F0304-V15V15
This Festo mechanical 2-way ball valve features a soft sealing principle, a 2/2 valve function, and a nominal width DN of 8 with an 11.6 mm inside diameter. Designed with weld-on ends according to ASME B16.11 and an ISO 5211 flange hole pattern of F03 and F04, the unit accommodates in-line installation in any mounting position for vapor, compressed air, inert gas, water, and neutral liquids within a medium temperature range of -20 °C to 200 °C. The component operates at a nominal pressure PN of 63 with a flow rate Kv of 19 m³/h, a breakaway torque of 7 Nm at nominal pressure, and a reversible flow direction indicated by slot direction matching flow direction. Submit the exact part number, quantity, and application requirements to request a quote for this assembly.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8089038
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8089038.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on end according to ASME B16.11
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F03 | F04
- Inside diameter
- 11.6 mm
- Nominal width DN
- 8
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 7 Nm
- Based on norm
- ASME B16.11 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 19 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
