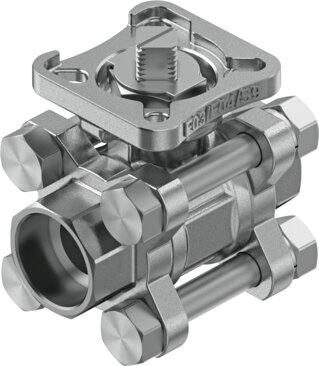

Reference imageConfirm configuration by manufacturer part number.
Festo
8089040
Ball valve VZBE-1/2-WA-63-T-2-F0304-V15V15
This Festo 8089040 industrial component is a 2-way mechanical soft-sealing ball valve featuring a nominal width DN of 15, a 15 mm inside diameter, and weld-on ends complying with ASME B16.11. Built on ASME B16.11 and ISO 5211 norms with F03 and F04 flange hole patterns, the 2/2 valve function supports reversible flow for vapor, compressed air, inert gas, water, and neutral liquids at a nominal pressure PN of 63 and a flow rate Kv of 32 m³/h across a medium temperature range of -20 °C to 200 °C. The unit operates with a 7 Nm breakaway torque at nominal differential pressure, indicates switching position via slot direction aligned with flow direction, and permits any mounting position for in-line installation while adhering to RoHS and VDMA24364 Zone III LABS conformity standards. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8089040
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8089040.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on end according to ASME B16.11
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F03 | F04
- Inside diameter
- 15 mm
- Nominal width DN
- 15
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 7 Nm
- Based on norm
- ASME B16.11 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 32 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8089040. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
