Festo
8089043

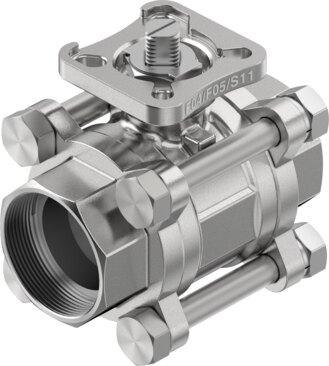

Ball valve VZBE-11/4-WA-63-T-2-F0405-V15V15
The Festo part number 8089043 is a mechanical 2-way ball valve featuring a 32 mm inside diameter, a 2/2 valve function, and soft sealing with a nominal pressure of PN 63. Designed for in-line installation with weld-on ends complying with ASME B16.11 and an ISO 5211 F04 or F05 flange hole pattern, this component accommodates a medium temperature range of -20 °C to 200 °C and a flow rate Kv of 160 m³/h. The reversible flow direction is indicated by the slot direction matching the flow, requiring a breakaway torque of 23 Nm at nominal differential pressure for media including compressed air, water, vapor, inert gas, and neutral liquids. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8089043
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8089043.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on end according to ASME B16.11
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F04 | F05
- Inside diameter
- 32 mm
- Nominal width DN
- 32
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 23 Nm
- Based on norm
- ASME B16.11 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 160 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
