Festo
8089044

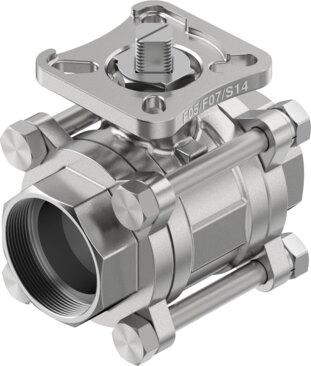

Ball valve VZBE-11/2-WA-63-T-2-F0507-V15V15
The Festo 8089044 is a mechanical 2-way ball valve featuring a soft sealing principle, an inside diameter of 40 mm, and a nominal width DN of 40 for in-line installation in any mounting position. Built with weld-on ends according to ASME B16.11 and an ISO 5211 flange hole pattern (F05 | F07), this 2/2 valve operates with a reversible flow direction, a nominal pressure PN of 63, a flow rate Kv of 247 m³/h, and a breakaway torque of 30 Nm at nominal pressure. It processes vapor, compressed air as per ISO 8573-1:2010 [-:-:-], inert gas, water, and neutral liquids within a medium temperature range of -20 °C to 200 °C, incorporating RoHS-compliant materials with VDMA24364 Zone III LABS conformity and a slot direction switching position indication. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8089044
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8089044.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on end according to ASME B16.11
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F05 | F07
- Inside diameter
- 40 mm
- Nominal width DN
- 40
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 30 Nm
- Based on norm
- ASME B16.11 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 247 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8089044. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
