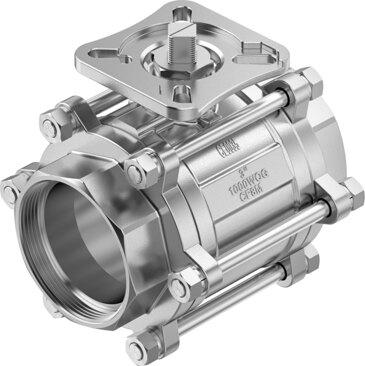

Reference imageConfirm configuration by manufacturer part number.
Festo
8089047
Ball valve VZBE-3-WA-63-T-2-F0710-V15V15
The Festo 8089047 is a 2-way mechanical industrial ball valve featuring a soft sealing principle, a nominal width DN of 80, an inside diameter of 76 mm, and an in-line installation design with weld-on ends according to ASME B16.11. Operating at a nominal pressure PN of 63, it delivers a flow rate Kv of 995 m³/h and a breakaway torque of 103 Nm at nominal differential pressure based on ASME B16.11 and ISO 5211 norms. This reversible 2/2 valve accommodates a medium temperature range of -20 °C to 200 °C across vapor, compressed air, inert gas, water, and neutral liquids, while featuring F07 and F10 flange hole patterns, RoHS compliance, and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8089047
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8089047.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on end according to ASME B16.11
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F07 | F10
- Inside diameter
- 76 mm
- Nominal width DN
- 80
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 103 Nm
- Based on norm
- ASME B16.11 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 995 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8089047. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
